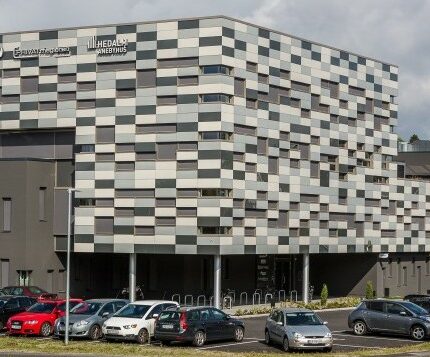

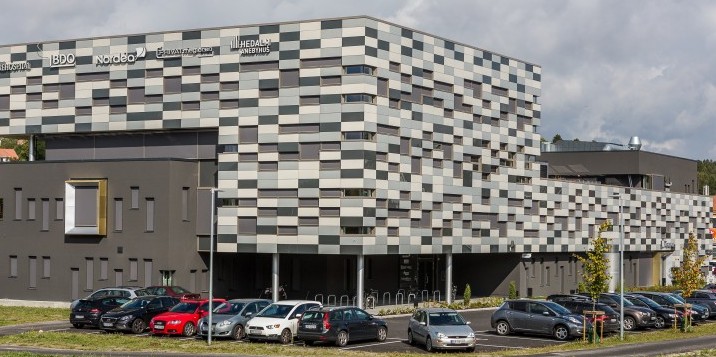

Wilberg Atrium is the multifunctional building signed Griff Arkitektur, designed to achieve the maximum energy efficiency.

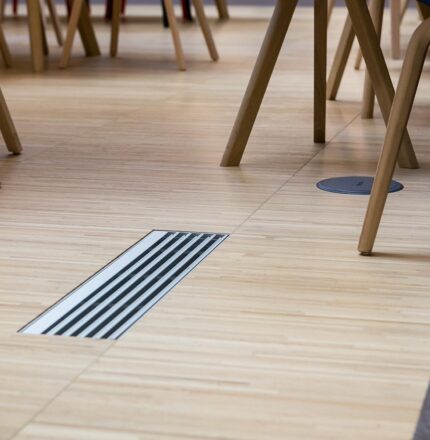

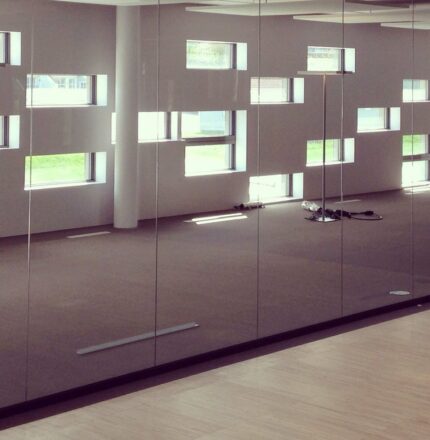

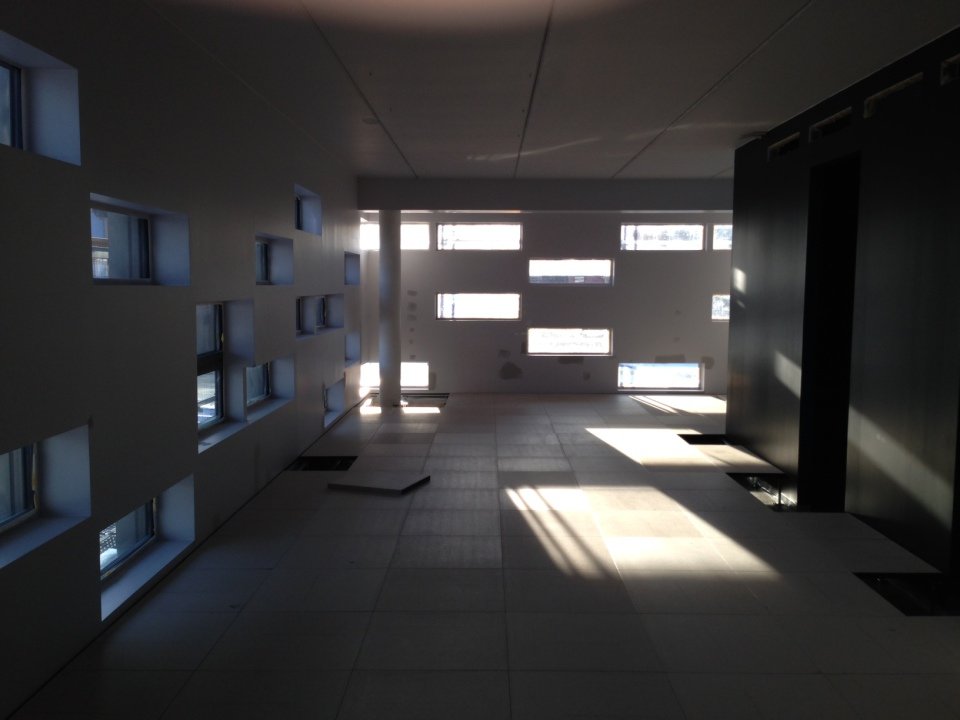

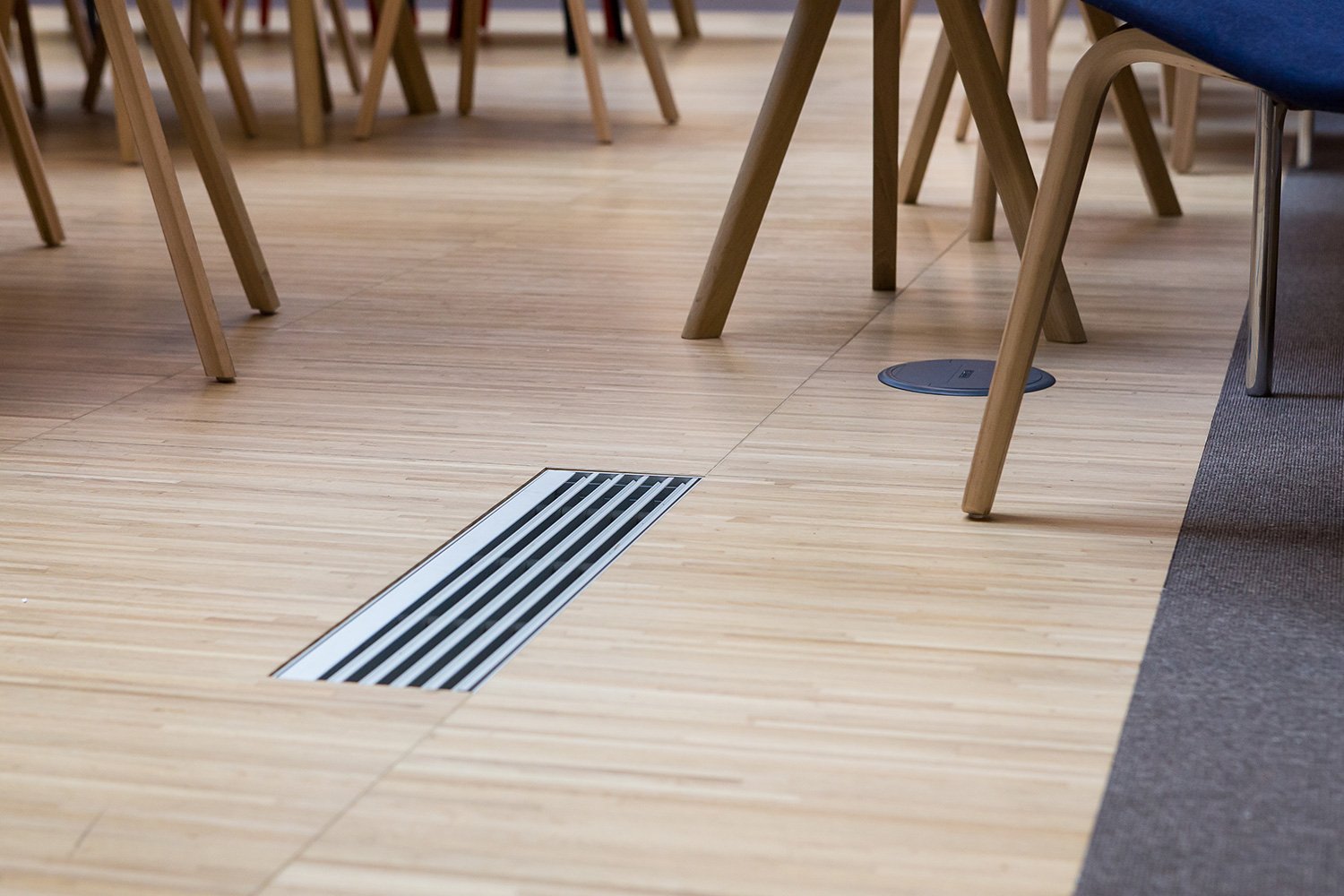

It was completely equipped with a UFAD (Underfloor Air Distribution) system integrated by the Nesite raised floor able to distribute the air flows in the heating and cooling operations.
The project has received the BREEAM “class A” certification, that represents the best evaluation of a building’s environmental performance.
MATERIAL SUPPLIED

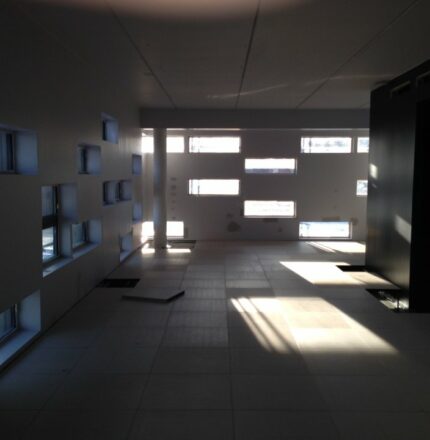

raised floor suitable for loose-lay upper covering, made of panels 60 x 60 cm with high density calcium sulphate core, 34 mm thick;

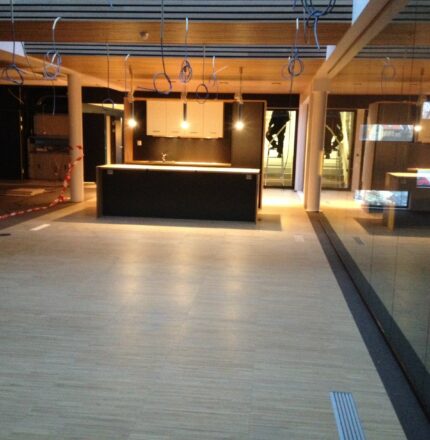

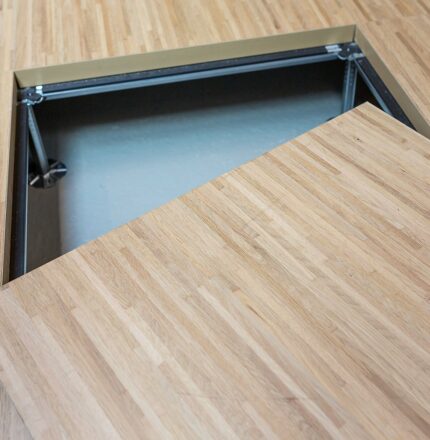

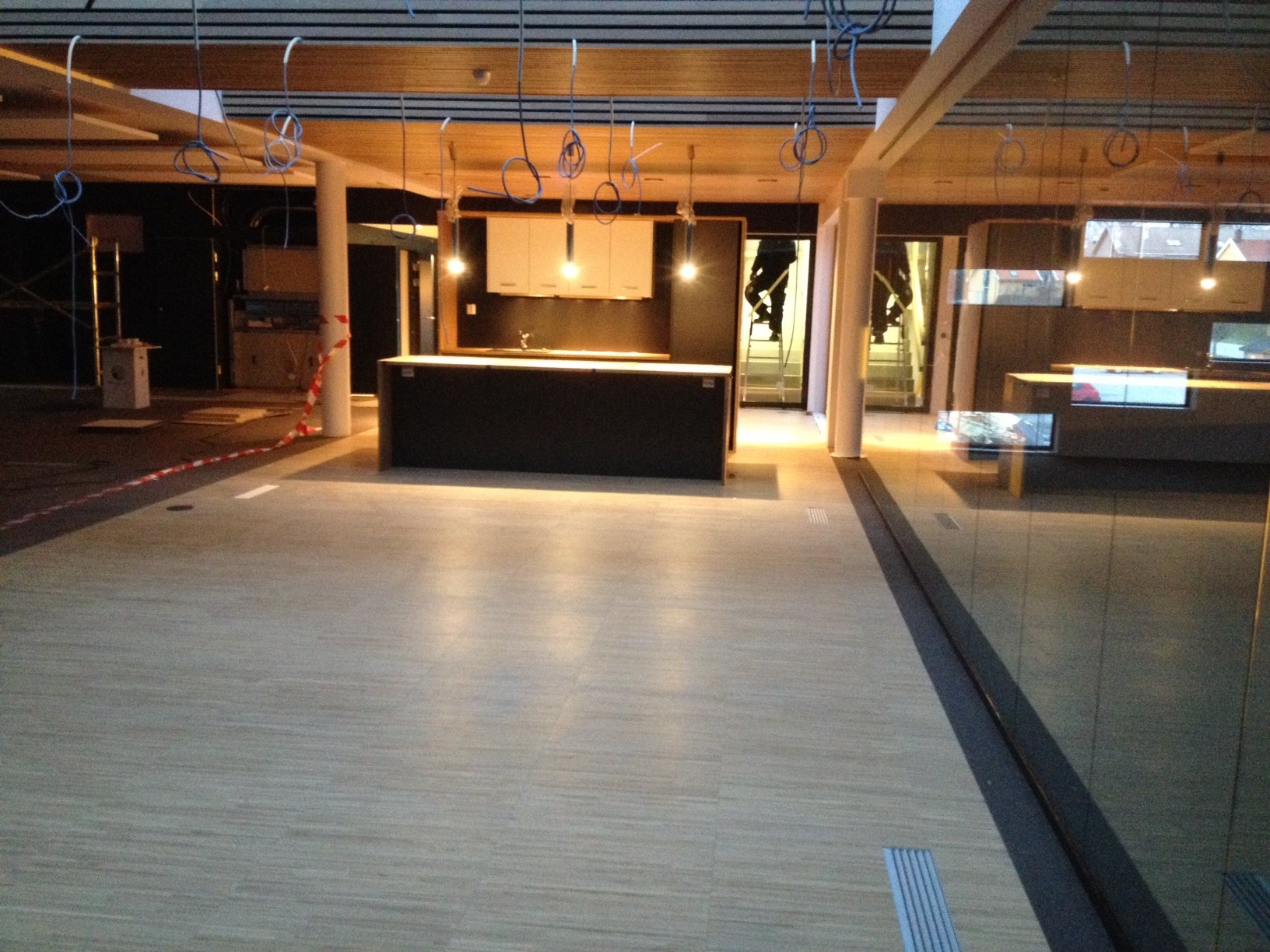

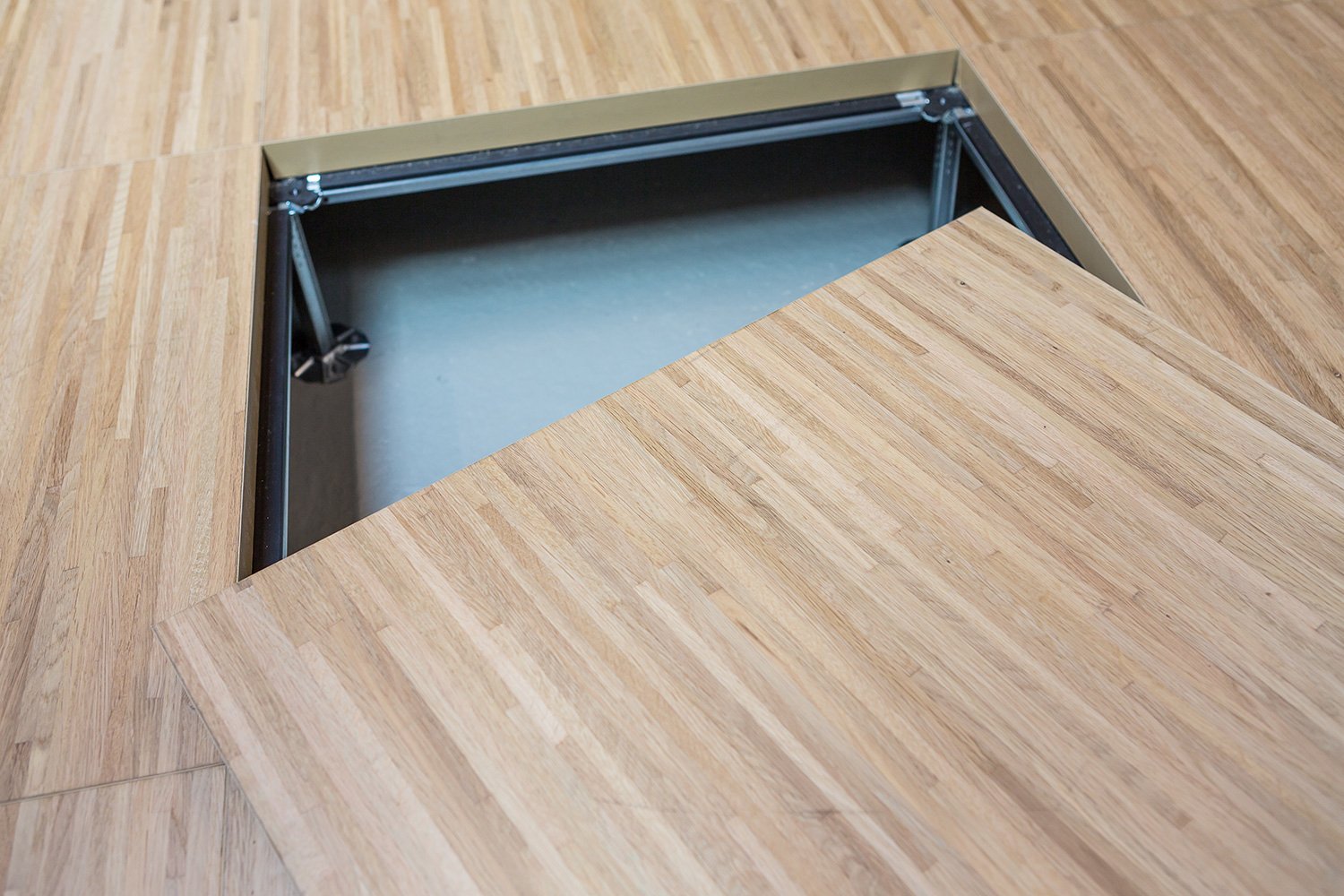

raised floor with natural parquet oak “finger joint” upper covering, made of panels 60 x 60 cm with high density calcium sulphate core, 34 mm thick;
Substructure MPL in galvanized steel, height 25 cm.
Nesite uses very high density calcium sulfate (1600 kg/m3).
Calcium sulphate panels are available in different thickness options:
PG1 - PG2 - PG3 - PG6
The structure with open cross-sectional stringers allows maximum stability of the floor even without gluing the columns to the supporting slab support.
